KF 78

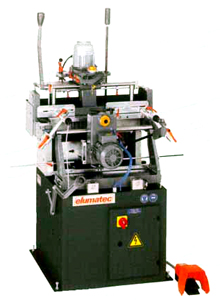

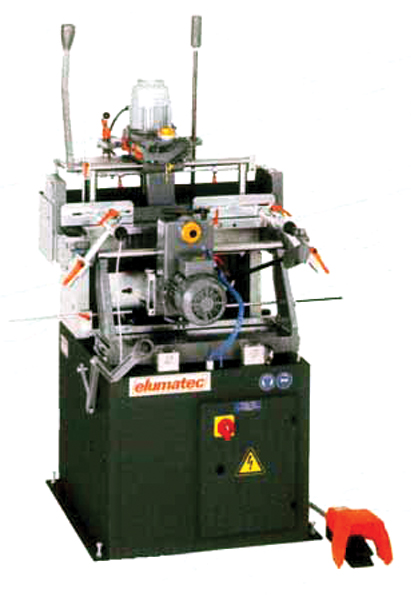

Two Spindle Copy Router

The KF 78 is two spindled copy router used for the cutting of lock holes or “sneck” hole in aluminium profiles up to 70mm. The machine is capable of routing in two planes; vertical and horizontal by way of its 2 independent routing heads. The machine can work either from copy templates (ratio 1:1), or between stops.











Click image to enlarge

Horizontal Data
Routing between stops: 300mm x 100mm
Routing with copy template: 270mm x 70mm
Stroke: 80mm

Vertical Data
Routing between stops: 290mm x 100mm
Routing with copy template: 230mm x 70mm
Stroke: 120mm

Spindle Speed: 12000rpm
